Helicopters are celebrated for their unparalleled versatility, executing maneuvers that fixed-wing aircraft can only envy. From hovering with precision to landing in confined spaces and operating at low altitudes, their capabilities are truly remarkable. However, helicopters do have limitations, particularly when it comes to altitude. Unlike airplanes that routinely soar at high altitudes, helicopters have a considerably lower flight ceiling. This article delves into the question, “How High Can A Helicopter Fly?”, exploring the factors that govern their altitude limits, typical operational heights, and the extraordinary record-breaking flights that push these boundaries.
Generally, turbine helicopters are capable of reaching altitudes of around 25,000 feet. In contrast, commercial airliners commonly cruise at 40,000 feet or even higher. The hovering altitude for helicopters is even lower, typically around 10,000 feet. It’s crucial to understand that each helicopter model has specific altitude safety limits outlined in its Pilot’s Operating Handbook (POH). Adhering to these limits is paramount for operational safety and insurance compliance.
To illustrate typical altitude limits, here’s a table showcasing some well-known helicopter models and their certified altitude ceilings:
| Helicopter Model | Altitude Limit |
|---|---|
| Schweizer 300 CB | 10,000 ft |
| Robinson R22 | 14,000 ft |
| Bell 206 Jet Ranger | 13,500 ft |
| Eurocopter AS 350 Astar | 20,000 ft |
| Eurocopter SA 315B Lama | 23,000 ft |
| AgustaWestland AW139 | 20,000 ft |
| Mil MI-26 | 15,100 ft |
| Boeing Chinook CH-47F | 20,000 ft |
However, it’s important to distinguish between these operational limits and the absolute altitude record for helicopter flight, which is significantly higher. The official record stands at an astonishing 12,954 meters (42,500 ft), achieved by Fred North in 2002. Furthermore, a helicopter even landed on Mount Everest, reaching a height of 8,848 meters (29,030 ft) in 2005.
Before we delve into Fred North’s record-setting flight, let’s understand the fundamental reasons why helicopters are inherently limited in their high-altitude capabilities compared to fixed-wing aircraft.
Understanding the Altitude Limitations of Helicopters
Several key factors contribute to why helicopters cannot reach the same altitudes as airplanes. These primarily revolve around weight, engine power, and the critical role of air density in generating lift.
One significant factor is weight. The heavier an aircraft, the greater the power required to lift it against gravity. For helicopters, which are often heavier relative to their size compared to airplanes, this weight factor is particularly critical. Increased weight demands more engine power to achieve lift.
Environmental-Considerations
Crucially, both the engine and the rotor blades of a helicopter rely on air to function. The engine needs air for combustion to produce power, and the rotor blades need to interact with air to generate lift. As altitude increases, the air becomes thinner. This decrease in air density at higher altitudes has a profound impact on helicopter performance. In thinner air, the engine struggles to produce the same power output, and the rotor blades become less efficient at generating lift.
In essence, helicopters are inherently weight-sensitive, and the diminishing air density at higher altitudes directly impairs both engine performance and rotor lift generation. This combination makes achieving and sustaining flight at high altitudes progressively more challenging for helicopters.
Environmental Factors: The “Hot and High” Challenge
The decrease in air density with altitude is further exacerbated by environmental conditions such as temperature and humidity. Air pressure naturally reduces as you ascend, leading to thinner air. This situation is compounded in hot and humid environments, creating what helicopter pilots often refer to as “hot and high” conditions.
Hot air is less dense than cold air. When air heats up, it expands, resulting in fewer air molecules available per unit volume. This means that in hot conditions, there are fewer air molecules available for the engine to draw in for power generation and for the rotor blades to interact with to produce lift.
Similarly, humid air also reduces air density. Humid air contains water vapor, which displaces air molecules. Therefore, in humid conditions, a portion of the air is replaced by water vapor, leaving fewer air molecules available to support engine power and rotor lift.
These environmental factors mean that a helicopter operating at the same altitude will perform differently depending on the location and weather conditions. For instance, a helicopter can typically achieve a higher altitude in the cold, dry air of Alaska compared to the hot, humid conditions near the equator.
Practical Considerations: Hovering and Operational Demands
Beyond the theoretical limitations imposed by air density, practical operational factors also play a significant role in determining the usable altitude range for helicopters.
While simply flying at altitude is one aspect, real-world helicopter operations often require more than just forward flight. Hovering, for instance, is a fundamental capability of helicopters but demands significantly more power than forward flight. Attempting to hover and land at high altitudes can present considerable challenges due to the reduced power and lift available in thinner air.

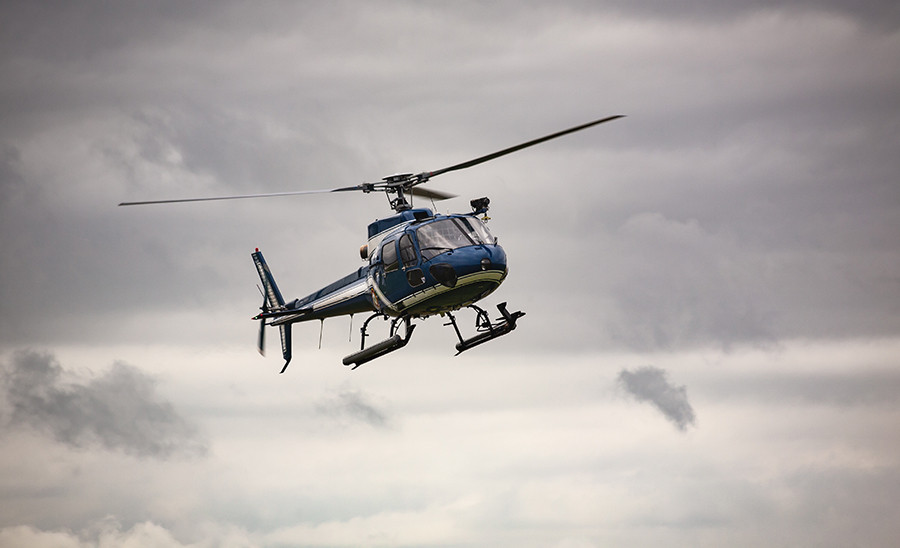

What-Happens-If-You-Try-to-Fly-Too-High-in-a-Helicopter
Ground effect can partially alleviate the power demands of hovering. Ground effect is a phenomenon where a cushion of air builds up beneath a helicopter when it’s close to the ground, typically within 1 to 1.5 rotor diameters. This air cushion enhances aerodynamic performance, allowing the helicopter to hover with less power. However, ground effect dissipates quickly as altitude above ground level increases.
In many real-world scenarios, particularly in search and rescue or firefighting operations, helicopter pilots need to hover out of ground effect to perform tasks like winching or water dropping. These operations demand substantial power reserves, making them considerably more difficult, if not impossible, at high altitudes.
Furthermore, most standard helicopters are not equipped with oxygen systems for pilots or pressurized cabins, unlike airliners designed for high-altitude flight. This lack of life support systems further limits the practical operational altitude for most helicopters.
Considering these factors, it becomes clear that high-altitude helicopter flight is inherently challenging and often impractical for routine operations. But what are the actual consequences of attempting to push a helicopter beyond its altitude limits?
The Perils of Exceeding Helicopter Altitude Limits
Attempting to fly a helicopter too high is not only challenging but also inherently dangerous. Pushing a helicopter beyond its performance envelope at high altitudes can lead to a cascade of critical issues.
At extreme altitudes, helicopters become increasingly unstable and erratic. Turbulence can become more pronounced, and the aircraft may experience severe shaking and rattling. These conditions make it significantly harder for the pilot to maintain control of the helicopter.
Ultimately, exceeding altitude limits can lead to engine failure. As air density decreases, the engine’s ability to produce power diminishes. If the helicopter ascends too high, the engine may simply run out of air to sustain combustion and cease to function.
Simultaneously, the rotors can lose lift and potentially stall. Similar to the engine, the rotor blades require sufficient air density to generate lift. In extremely thin air, the rotors may not be able to generate enough lift to support the helicopter’s weight, leading to a loss of altitude control and potentially a blade stall, a dangerous aerodynamic condition. The tail rotor also becomes less effective in thinner air, which can cause the helicopter to uncontrollably rotate.
These critical failures stem from the fundamental issue of insufficient air molecules to provide the necessary power and lift at extreme altitudes. The combined effect is a loss of control, jeopardizing the safety of the flight. Pilot control over the main rotor, tail rotor, and engine is essential for safe helicopter operation, and these control elements become compromised at excessive altitudes.
Therefore, attempting to fly too high in a helicopter is not just a matter of performance limitation; it’s a serious safety hazard. This begs the question: How was Fred North able to achieve his record-breaking flight to 42,500 feet, given these inherent dangers?
Fred North’s Historic High-Altitude Flight
Fred North’s record-breaking helicopter flight in March 2002 was an extraordinary feat that defied typical helicopter altitude limitations. He piloted an AS 350 B2 “Squirrel” helicopter to an unprecedented altitude of 12,954 meters (42,500 ft).
North was an exceptionally experienced helicopter pilot, with 8,500 total helicopter flight hours, including 5,000 hours specifically on the AS 350 B2. His meticulous planning and preparation were crucial to the success of this ambitious endeavor.
He strategically chose Cape Town for the flight, known for its ideal weather conditions and mountainous terrain. The presence of mountains provided frequent updrafts, which he anticipated would assist in gaining altitude in the thin air.
Crucially, his helicopter was specially modified to be significantly lighter than a standard AS 350 B2. By removing unnecessary equipment, he reduced the helicopter’s weight by 200 kg (440 lbs). North also wore a compression jacket to mitigate the physiological effects of thinner air and had supplemental oxygen available throughout the flight, recognizing the risks of hypoxia at extreme altitudes.
Despite these preparations, the flight was far from easy and fraught with risk. North reported that as he ascended, the helicopter’s airspeed progressively decreased. At the highest altitudes, he became heavily reliant on the mountain updrafts to maintain lift and continue climbing.
After 1.5 hours at extreme altitude, North decided to descend, having successfully broken the existing altitude record. However, the flight was not without further drama. During the descent, the engine failed. Fortunately, at high altitude, there is ample time for a pilot to attempt an engine restart at a lower, denser altitude.
However, Fred North was unable to restart the engine. He executed a successful engine-off landing (autorotation), demonstrating his exceptional piloting skills. Reflecting on the experience, North famously stated, “I will never do it again,” highlighting the extreme risks and challenges involved in such a record attempt.
High-Altitude Helicopter Flying in Real-World Scenarios
High-Altitude-Flying-in-Real-Life
While Fred North’s flight showcased the extreme limits of helicopter altitude, it’s crucial to remember that such flights are exceptional and not representative of typical helicopter operations. Most helicopter pilots rarely, if ever, approach such altitudes in their routine flying.
However, operating in mountainous regions presents inherent altitude-related challenges, even at altitudes far below record-breaking levels. Helicopter pilots flying in mountains, particularly in hot weather, must be acutely aware of the “hot and high” hazards. These risks are emphasized during helicopter pilot training, and mountain flying requires specialized skills and careful planning.
Mountain helicopter flying is considered a specialized discipline, and many pilots undergo specific training courses to learn techniques for safe operations in these environments. These courses focus on understanding mountain weather patterns, performance considerations at altitude, and emergency procedures specific to mountainous terrain.
Personal experiences further underscore the practical challenges of high-altitude helicopter operations. Even at relatively moderate altitudes, such as 10,000 feet, combined with hot weather, performance can be significantly degraded. Situations can arise where a helicopter may struggle to hover for takeoff, requiring specialized techniques like running take-offs from runways to gain sufficient airspeed and lift.
Furthermore, anecdotes of pilots pushing piston-engine helicopters like the Robinson R22 to extreme altitudes, even approaching 18,000 feet, highlight the inherent risks and the limits of safe control near these performance boundaries. These experiences reinforce the importance of respecting altitude limits and prioritizing safety over pushing for records.
Conclusion: Helicopters and the Altitude Frontier
In summary, helicopters are fundamentally limited in their maximum flight altitude compared to fixed-wing aircraft due to their inherent design and reliance on air density for both engine power and rotor lift.
The primary limiting factor is the decreasing air density at higher altitudes. As a helicopter ascends, the thinner air reduces engine power output and rotor efficiency, eventually reaching a point where sustained flight becomes impossible. Environmental factors like temperature and humidity further exacerbate these limitations.
While operational altitude limits are defined for each helicopter model in their POH, extraordinary record-breaking flights demonstrate that these limits can be pushed under highly controlled and specialized conditions. However, such flights are exceptionally risky and not representative of routine helicopter operations.
Despite their altitude limitations, helicopters excel in a wide range of other capabilities, including hovering, vertical takeoff and landing, and low-speed maneuverability. These unique strengths make them indispensable for numerous applications where high altitude performance is not the primary requirement.
While helicopter technology continues to advance, with newer models offering improved performance, it’s unlikely that helicopters will ever match the high-altitude capabilities of fixed-wing aircraft. They are designed for different operational niches, and their versatility in low-to-medium altitude environments remains their defining strength. For most helicopter operations, the question isn’t “how high can they fly?”, but rather “how effectively can they perform their diverse tasks within their operational altitude range?”
